Avoidusing in vibration and highly dynamic pressure load.
|
Dial diameter |
Ø25mm(1”) |
|
Case |
162 series－plastic 163~164 series－plating |
|
Connection |
1/8"PT ; 1/8”NPT ; 7/16”UNF * Other connection sizes is available to order |
|
Measuring principle |
162 series－bourdon tube, brass 163~164 series－spiral tube, brass |
|
Lens |
Plastic |
|
Accuracy |
±3~5%F.S. |
|
Temperature limits |
Medium +60℃ |
|
Ranges |

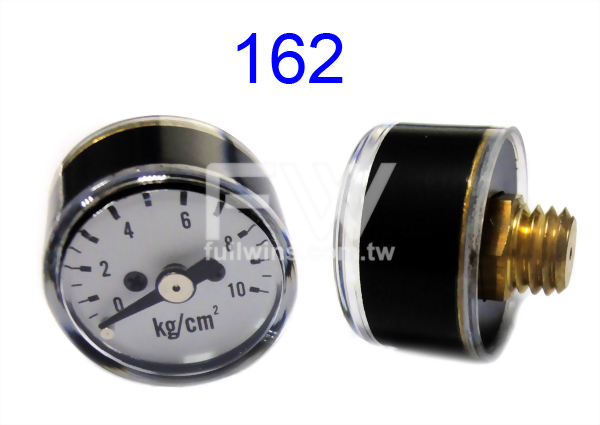

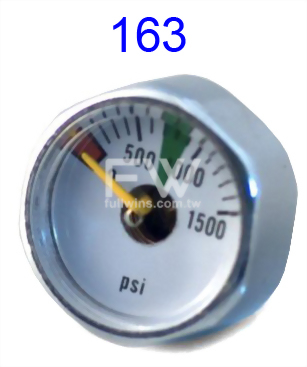

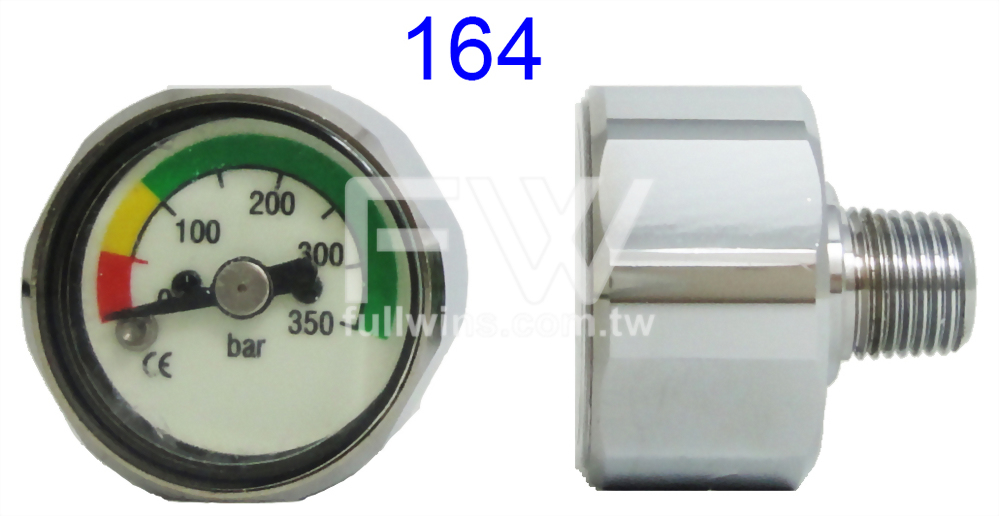

162 series－positive 0/1kg/cm2 (15psi) ~ 0/60kg/cm2 (850psi) negative(compound pressure) 0/-76cmHg(-30inHg) 163 series－positive 0/150psi ~ 0/6000psi 164 series－positive 0/350bar |
