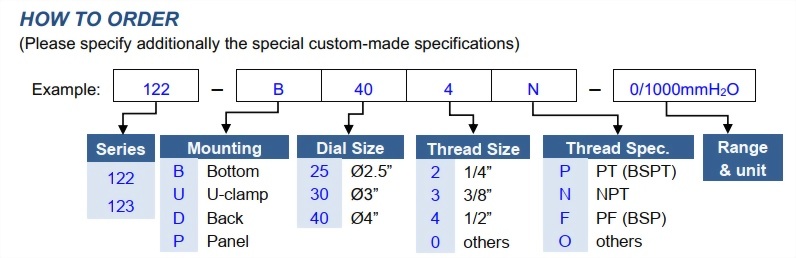

Please select which you want to ask the following product specifications：
| *Material: | |
| *Mounting Type: | |
| *Dial Size: | |
| *Thread Size: | |
| *Range & Unit: |
|
Dial diameter |
Ø2½”(65mm) ; Ø3”(75mm) ; Ø4”(100mm) |
|

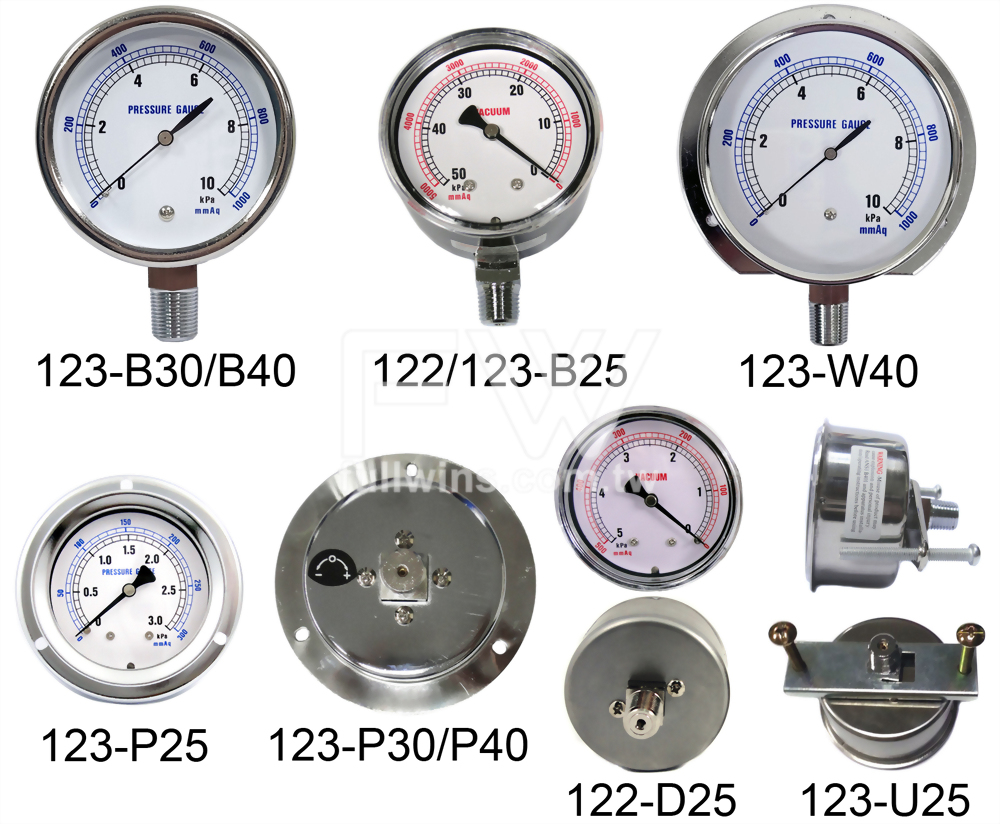

Mounting types |
Type B － Direct bottom mounting Type U － Center back connection with U-clamp for Panel mounting Type D － Center back connection without flange Type P － Center back connection with front flange for Panel mounting |
|
Case |
122 series － Stainless steel 304 123 series － Steel with black enamel or with chrome plating |
|
Lens |
Ø2½”－plastic ; Ø3” Ø4” glass |
|
Dial and pointer |
Aluminum |
|
Measuring principle |
Capsule , brass |
|
Movement |
brass |
|
Connection |
brass |
|
Adjustment |
Adjustment screw on the dial or on back case, allowing correction of ±10% F.S. |
|
Accuracy |
±3% F.S. standard |
|
Temperature |
Medium max.60℃ |
|
Ranges |
0/300 ~ 0/5000mmH2O (mmAq) ＜other units available＞ positive, negative or compound pressure available |
Capsule type pressure gauges can measure low and extremely low positive or negative pressure.
For gaseous and dry media only.
