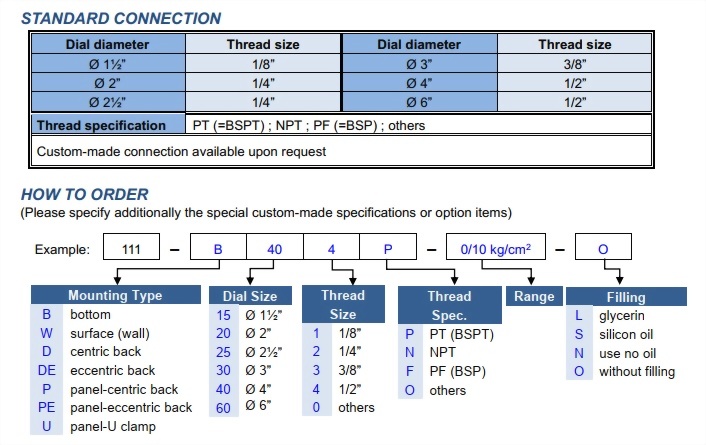

Please select which you want to ask the following product specifications：

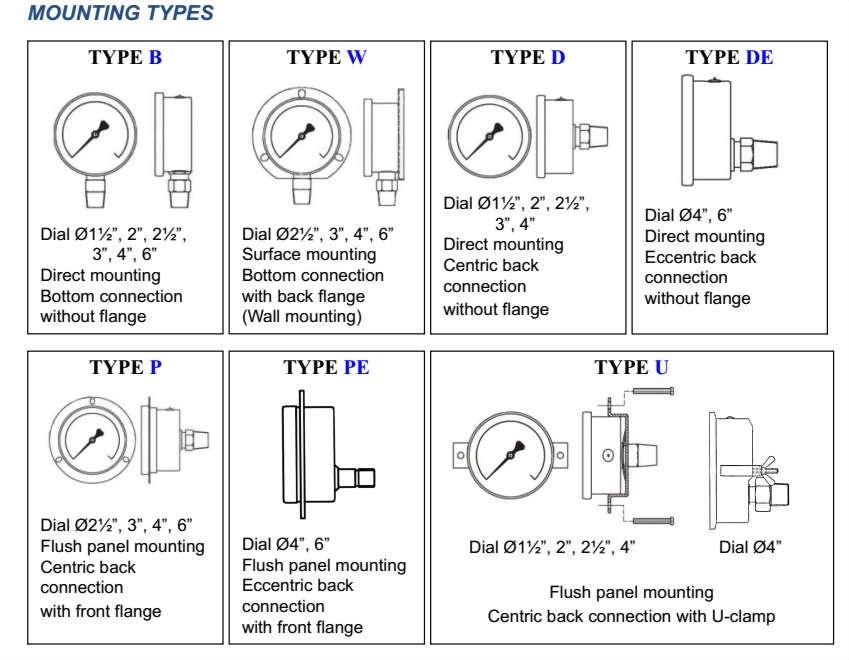

| *Mounting Type: | |
| *Dial Size: | |
| *Thread Size: | |
| *Thread Spec.: | |
| *Range & Unit: | |
| Options: |
|
Dial diameter |
1½” (40mm) ; 2” (50mm) ; 2½” (63mm) ; 3” (75mm) ; 4” (100mm) ; 6” (150mm) |
|
Case |
Stainless steel 304, IP65 Crimp bezel for dial Ø1½” ~ Ø4” ; Bayonet bezel for dial Ø4” and Ø6” |
|
Lens |
Acrylic or glass for dial Ø1½” ~ Ø4” ; Safety glass for dial Ø4” and Ø6” |
|
Dial |
Aluminum, black and red/blue markings on white background, dial arc 270° |
|
Measuring principle |
Bourdon Tube, stainless steel 316 |
|
Movement |
Stainless steel |
|
Pointer |
Aluminum, black, adjustable pointer available for dial Ø4” and Ø6” |
|
Connection |
Male thread 1/8”, 1/4”, 3/8”, 1/2” PT(BSPT) / NPT / PF(BSP), stainless steel 316 |
|
Filling |
Without (dry) ; glycerin filled ; silicon oil filled |
|
Accuracy |
±2.5%F.S. for Ø1½” & Ø2” ; ±1.6%F.S. for Ø2½” & Ø3” ; ±1.0%F.S. for Ø4” & Ø6” |
|
Temperature limits |
Dry：medium +200℃ ; ambient -20 to +60℃ Glycerin filled: medium +60℃ ; ambient +10 to +60℃ Silicon oil filled: medium +100℃ ; ambient -45 to +60℃ ＜Silicon oil filled type can be for medium +200℃ only if the case and connection are welded together (argon-arc welding), available for Ø4” & Ø6”.＞ |
|
Ranges |
positive 0/1 ~ 0/1000 kg/cm2 negative 0/-76 cmHg (relative vacuum) compound -76cmHg / 0 / 1 ~ -76cmHg / 0 / 35 kg/cm2 ＜other units available, e.g. psi, bar, MPa…etc.＞ |
