121 series—All stainless steel
|
Dial diameter |
Ø2.5”(65mm) ; Ø3”(75mm) ; Ø4”(100mm) ; Ø6”(150mm) |
|
Mounting types |

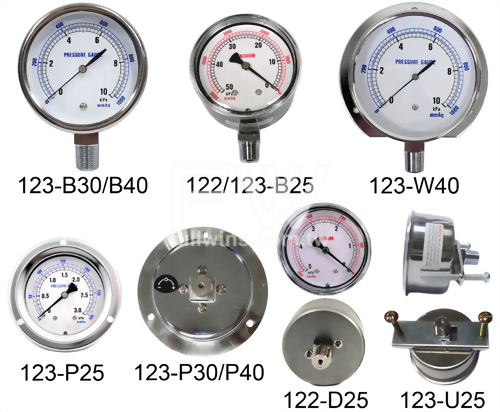

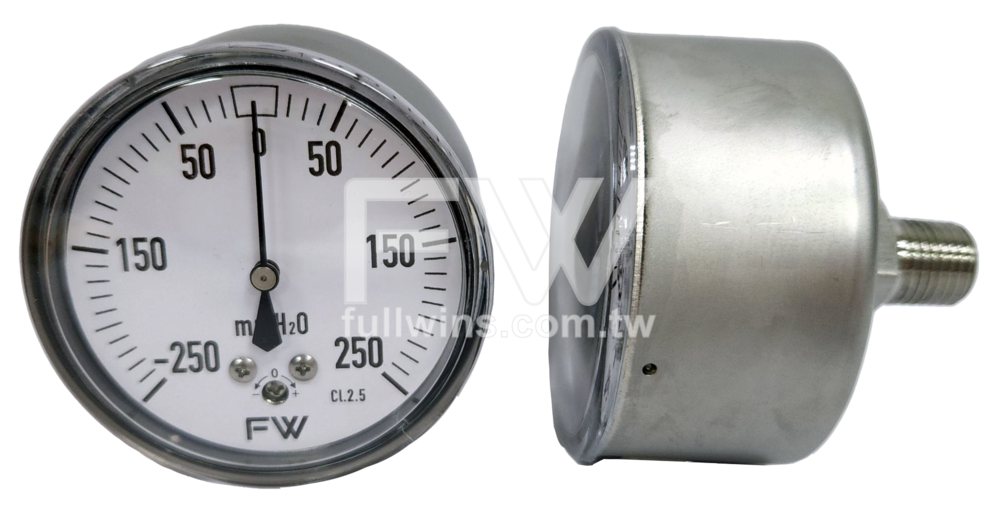

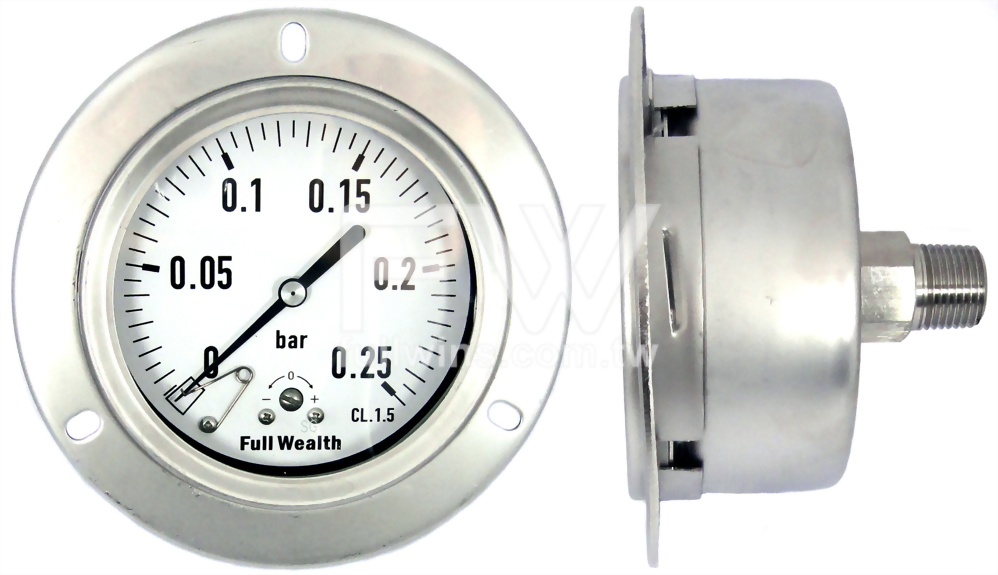

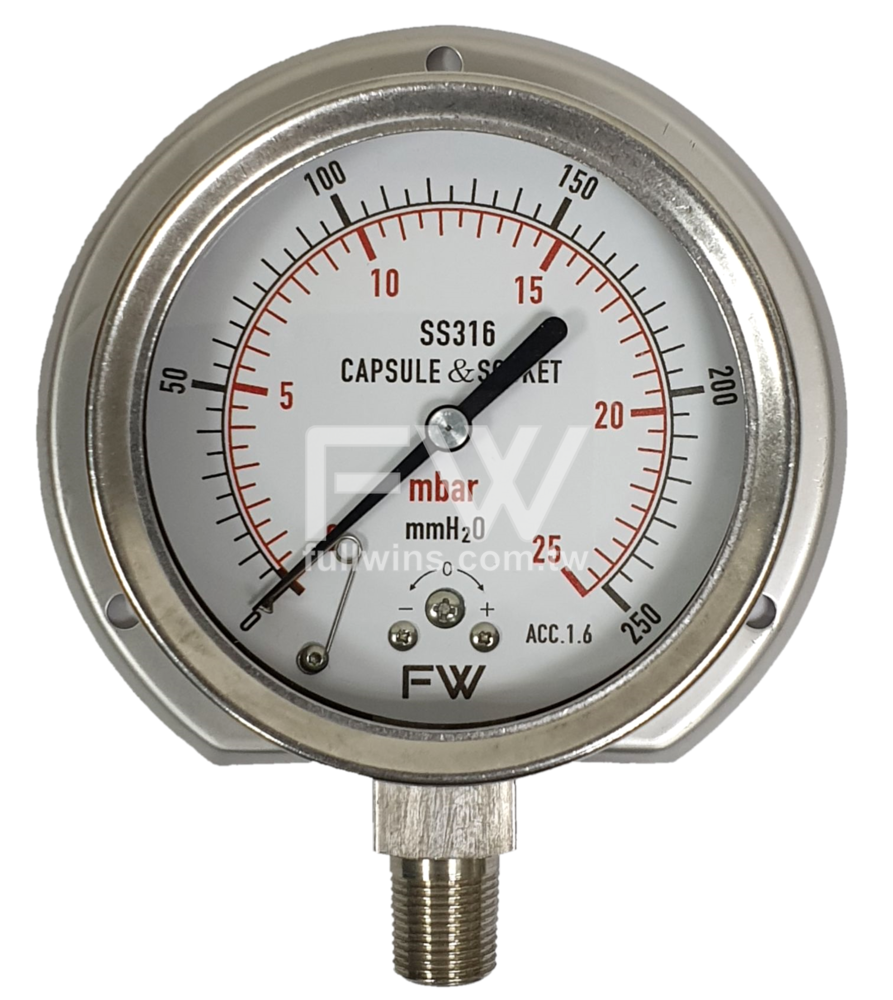

Type B － Direct bottom mounting Type W － Bottom connection with back flange for wall mounting Type D － Center back connection without flange Type P － Center back connection with front flange for Panel mounting
Type U － Center back connection with U-clamp for Panel mounting |
|
Case |
Stainless steel 304(standard) ; Stainless steel 316 available |
|
Lens |
Ø2.5”－PC Ø3”－glass Ø4” ; Ø6”－glass/safety glass |
|
Dial and pointer |
Aluminum |
|
Measuring principle |
Capsule , stainless steel 316 or 304 |
|
Movement |
Stainless steel or brass |
|
Connection |
Stainless steel 316 or 304 |
|
Adjustment |
Adjustment screw on the dial or on back case, allowing correction of ±10% F.S. |
|
Accuracy |
±2.5% F.S. standard ; ±1.6% F.S. available for Ø4” Ø6” |
|
Temperature |
Medium max.100℃ |
|
Ranges |
0/160 ~ 0/5000mmH2O (mmAq) ＜other units available＞ positive, negative or compound pressure available |
Capsule type pressure gauges can measure low and extremely low positive or negative pressure.
For gaseous and dry media only. All stainless steel type can be used with aggressive media and ambience.
