Dial diameter |

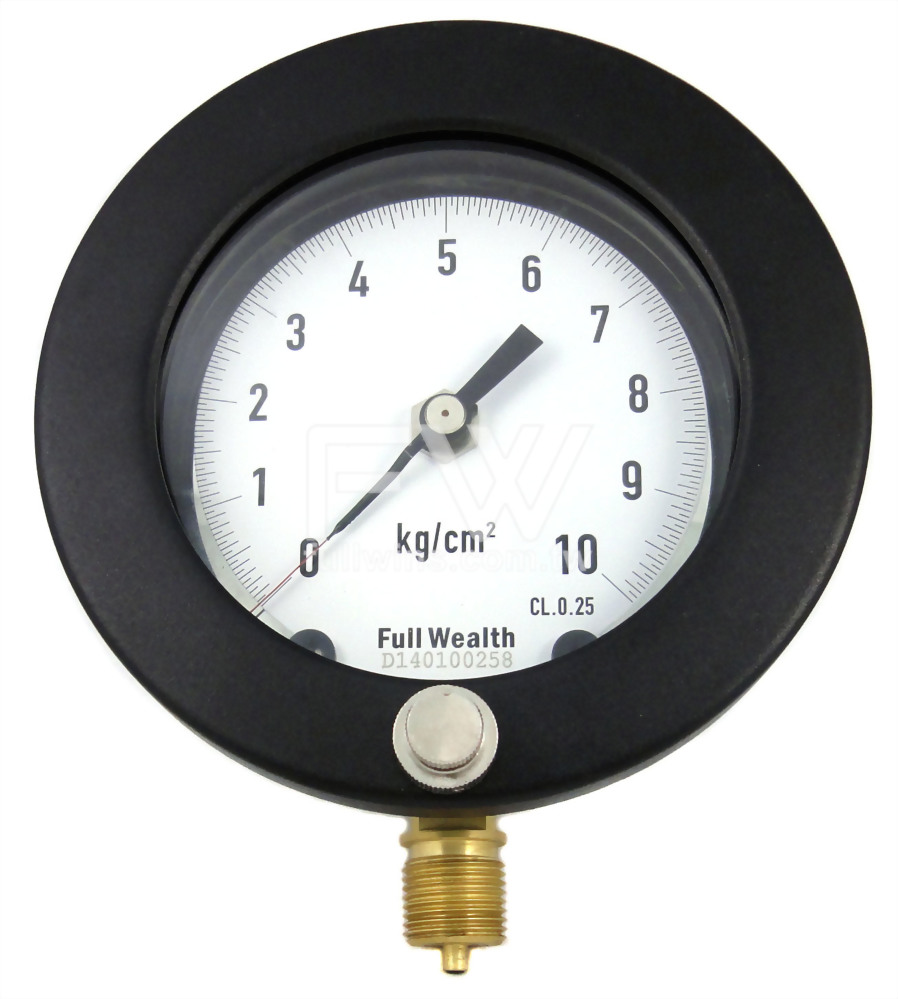

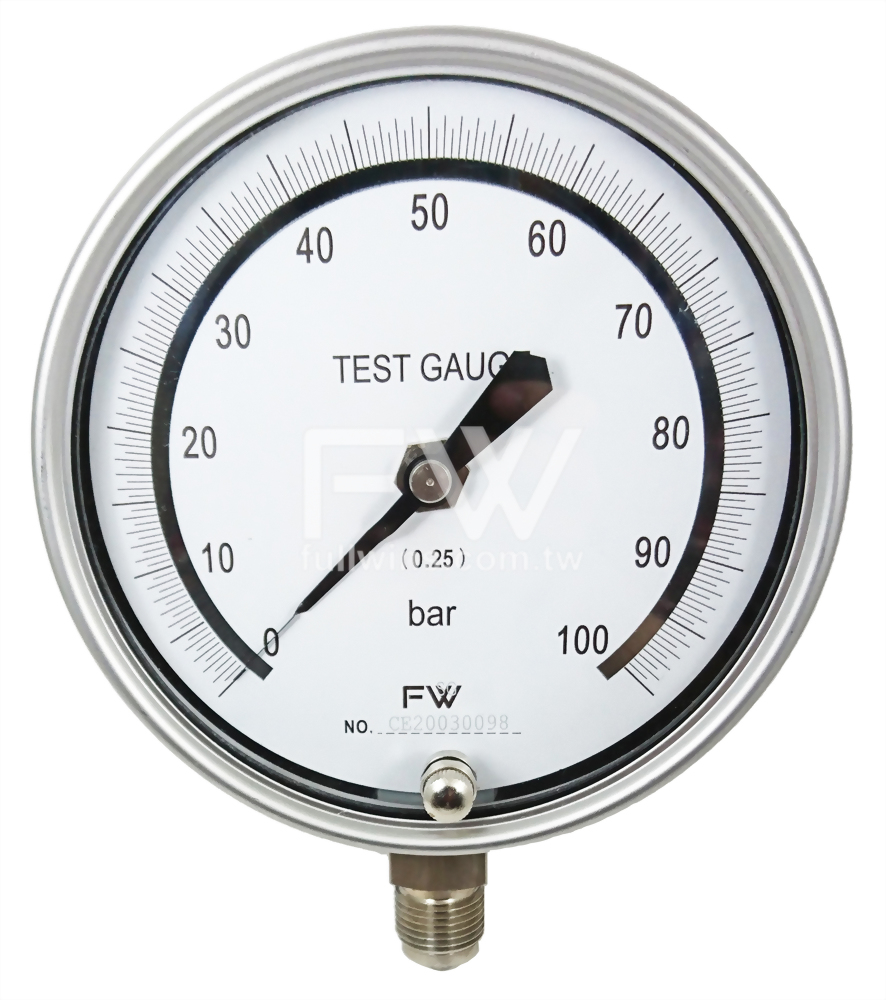

133 series --- 120mm 135~137 series --- 6” (150mm) |
|
|
Mounting type |
Type Type W Type DE Type PE |
－Direct bottom mounting － Bottom connection Wall mounting － Eccentric back connection without flange － Eccentric back connection with front flange for panel mounting |
|
Lens |
glass |
|
|
Dial |
Aluminum, black on white background |
|
|
Measuring principle |
Bourdon Tube, 135 series - stainless steel 316 133& 136 & 137 series – copper alloy |
|
|
Movement |
135 series - stainless steel ; 133 & 136 & 137 series – copper alloy |
|
|
Pointer |
Aluminum, black |
|
|
Connection |
Male thread 135 series —SS316 stainless steel ;133,136,137 series — copper alloy 1/4”；3/8”；1/2” PT(BSPT) / NPT / PF(BSP) |
|
|
Accuracy |
±0.25% ; ±0.4% of Full Scale |
|
|
Temperature limits |
135 series - medium +200℃ 133 & 136 & 137 series - medium +60℃ |
|
|
Ranges |
positive 0/1kg/cm2 (15psi) ~ 0/1000kg/cm2 (15000psi) available negative 0/-1 kg/cm2 ; 0/-760mmHg compound -1/0/1 ~ -1/0/20kg/cm2 available ＜other units available, e.g. psi, bar, MPa, kPa…etc.＞ |
|
