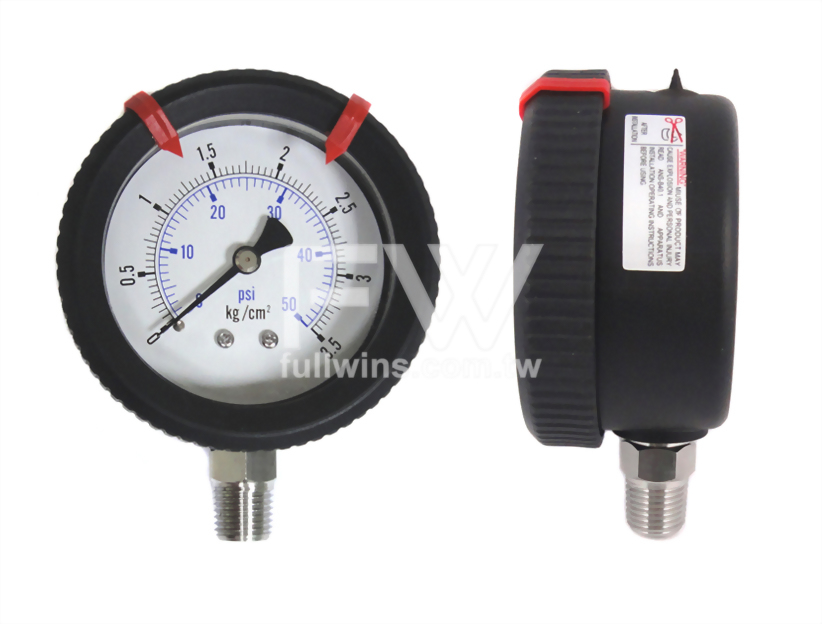

Dial diameter |
2½” (63mm) |
|
Case |
PP |
|
Connection |
Male thread 1/8”, 1/4”, 3/8” PT(BSPT) / NPT / PF(BSP), brass |
|
Measuring principle |
Bourdon Tube, brass / stainless steel SS316 |
|
Movement |
Brass |
|
Lens |
Acrylic |
|
Pointer |
Aluminum, black |
|
Dial |
Aluminum, black and red/blue markings on white background, dial arc 270° |
|
Filling |
Without (dry) ; glycerin filled |
|
Accuracy |
±1.6%F.S. |
|
Temperature limits |
Medium +60℃ |
|
Ranges |
positive 0/1 ~ 0/1000 kg/cm2 negative 0/-76 cmHg (relative vacuum) compound -76cmHg / 0 / 1 ~ -76cmHg / 0 / 35 kg/cm2 ＜other units available, e.g. psi, bar, MPa…etc.＞ |
