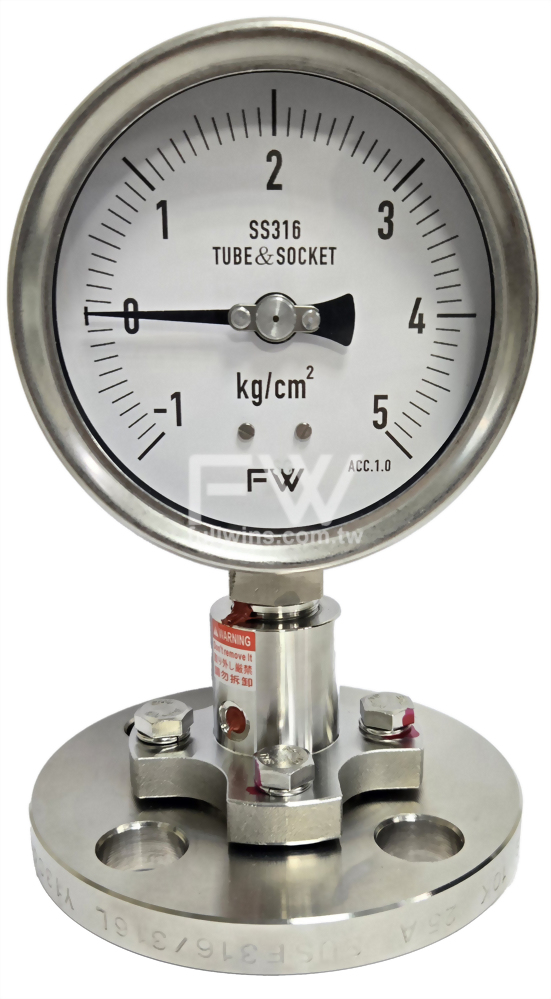

Diaphragm Seal with Flange Connection (Flush Diaphragm / Internal Diaphragm)

Model : DS300

Please select which you want to ask the following product specifications：

*Housing material:
*Diaphragm:
*Corrosion Protection:
*Flange Size:
*Flange Rating:
Option:

Q'ty :

Catalog Download

Description
Specifications

The function of a diaphragm seal is to prevent the fluid from coming into direct contact with the instrument. This prevents the instrument from being damaged by obstruction or erosion caused by corrosive, dirty, viscous, or crystallizing fluids or gases.

DS300 series adopts an open membrane design, making it more suitable for high-viscosity or crystallizing fluids, preventing clogging and easy to clean.

Applicable instrument	Analog pressure gauge; Digital pressure gauge; Pressure transmitter
Pressure range	0/2.5 ~ 0/60 kg/cm² (bar)
Instrument connection	1/4”；3/8”；1/2” PT / NPT / BSPP(PF) female thread
Process connection	JIS 10K — 3/8” ; 1/2” ; 3/4” ; 1” ; 1-1/4” ; 1-1/2” ; 2”；3” FF ; RF ANSI150LB— 1/2” ; 3/4” ; 1” ; 1-1/4” ; 1-1/2” ; 2”；3” FF ; RF DN — 25 ; 40 ; 50 ; 80 ; 100 *Other sizes customizable

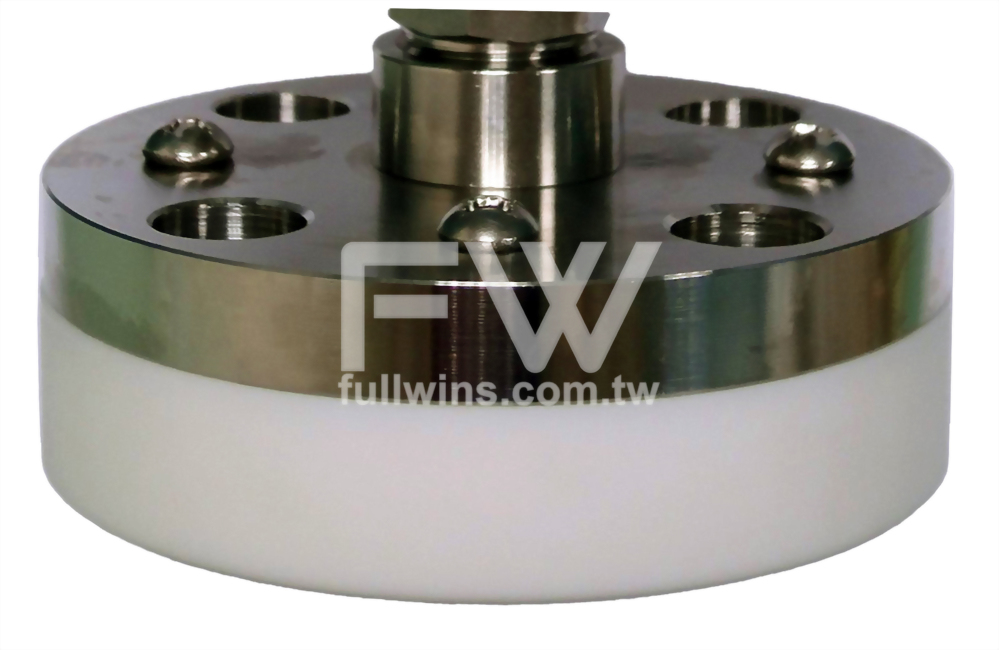

Housing material	SS304 ; SS316 ; SS316L ; Hastelloy C276 ; PTFE ; PVDF ; PP ; PVC * When PP, PVC, PTFE, or PVDF plastic materials are selected as the body material, the flange is divided into upper and lower seats, with the upper seat being SS304 or SS316.
Diaphragm	Standard：SS316L Option：PTFE ; Hastelloy C276 ; Tantalum
Filling fluid	Standard: Glycerin (Max.80℃); Option: Silicon oil (Max.200°C); High-temperature oil (Max.400°C)
Accessory assembly (optional)	(1) Cooling fin (2) Capillary for remote measurement (specify length of capillary when ordering) (3) Damper (4) Wetted parts PTFE Coating (5) Wetted parts PTFE Lining
