Stainless Steel Diaphragm Seal with Threaded Connection

Stainless Steel Diaphragm Seal with Threaded Connection — Two-piece flange assembly

Model : DS190

Please select which you want to ask the following product specifications：

*Diaphragm Housing:
*Diaphragm:
*Process Connection:
*Thread Spec.:
*Thread:
Option:Accessory assembly:

Q'ty :

Catalog Download

Description
Specifications

The function of a diaphragm seal is to prevent the fluid from coming into direct contact with the instrument. This prevents the instrument from being damaged by obstruction or erosion caused by corrosive, dirty, viscous, or crystallizing fluids or gases.

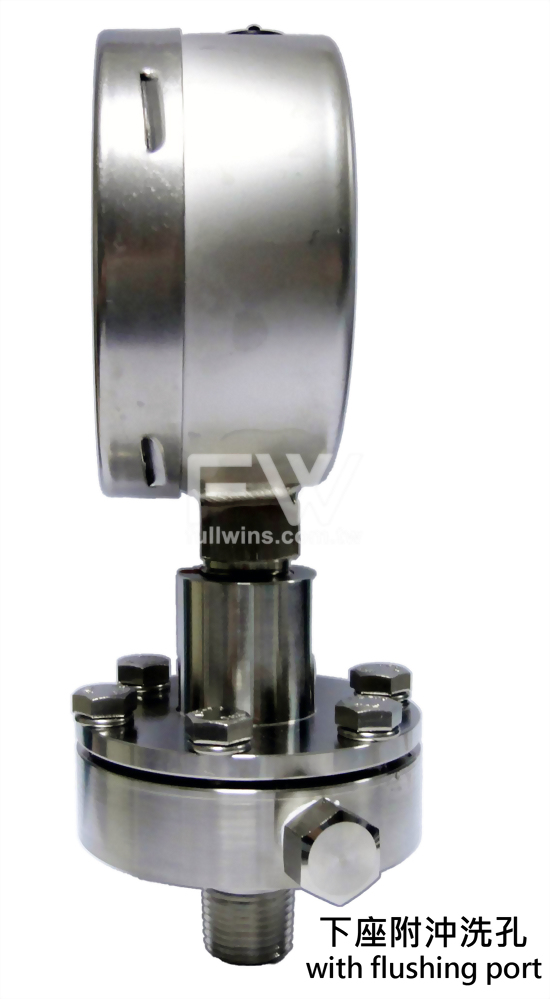

The DS190 diaphragm type is a combination of upper and lower flanges and can be equipped with diaphragm of various materials. If a stainless steel diaphragm is used, the upper and lower flanges can be disassembled for cleaning, or the lower flange can be equipped with a flushing port, without affecting the diaphragm structure.

Applicable instrument	Analog pressure gauge; Digital pressure gauge; Pressure transmitter
Pressure range	0/1~0/60 kg/cm² (bar), Vacuum 0/-760mmHg
Instrument connection	1/4” ; 3/8” ; 1/2” PT / NPT / BSPP female thread
Process connection	1/4” ; 3/8” ; 1/2” ; 3/4” ; 1” PT / NPT / BSPP male / female thread
Diaphragm Housing	Size: Ø80mm ; Ø90mm ; Ø100mm ; Ø120mm Dependent on the span of instrument. Material: SS304 ; SS316 ; SS316L ; Hastelloy C
Diaphragm	Standard: SS316L Option: PTFE ; Hastelloy C276 ; Tantalum
Filling fluid	Standard: Glycerin (Max.80℃); Option: Silicon oil (Max.200°C); High-temperature oil (Max.400°C)
Accessory assembly (optional)	(1) Cooling fin (2) Capillary for remote measurement (specify length of capillary when ordering) (3) Damper (4) PTFE coating (5) Lower Housing with flushing port
