Please select which you want to ask the following product specifications：
| *Dial: | |
| *Range: | |
| *Connection Style(Thread): | |
| *Connection Size(Thread): | |
| *Connection Type(Thread): | |
| *Connection Shape(Thread): | |
| *Probe Length(mm): | |
| *Probe Dia.: | |
| *Probe Material: |
|

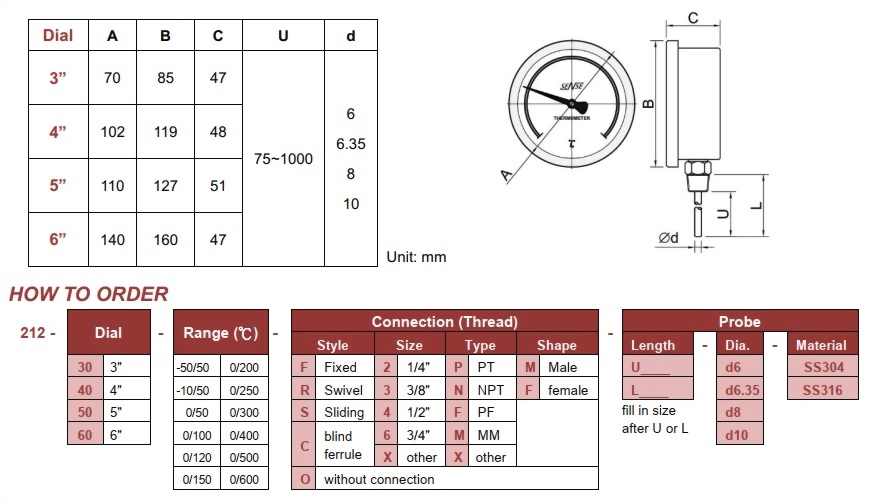

Nominal Dial Size |
Ø3"(75mm) ; Ø4"(100mm) ; Ø5"(125mm) ; Ø6"(150mm) |
|
Connection |
Thread size: 1/4" ; 3/8" ; 1/2" ;
3/4" PT(BSPT)／NPT／PF(BSPP)
Style: Fixed |
|
Casing Material |
Stainless Steel 304 |
|
Window |
Glass |
|
Pointer and Dial |
Aluminum |
|
Probe Material |
Stainless Steel 304 ; Stainless Steel 316 |
|
Probe Size |
Length 75 to 1000mm Diameter Ø6／Ø6.35／Ø8／Ø10 mm |
|
Ingress protection |
IP65 |
|
Accuracy |
±1 division |
|
Optional accessory |
Thermowell |
Used for all types of industrial applications, particularly for installation in tanks and pipelines.
Combination with or without thermowell offers many possibilities for temperature measurement in liquid and gases media.
