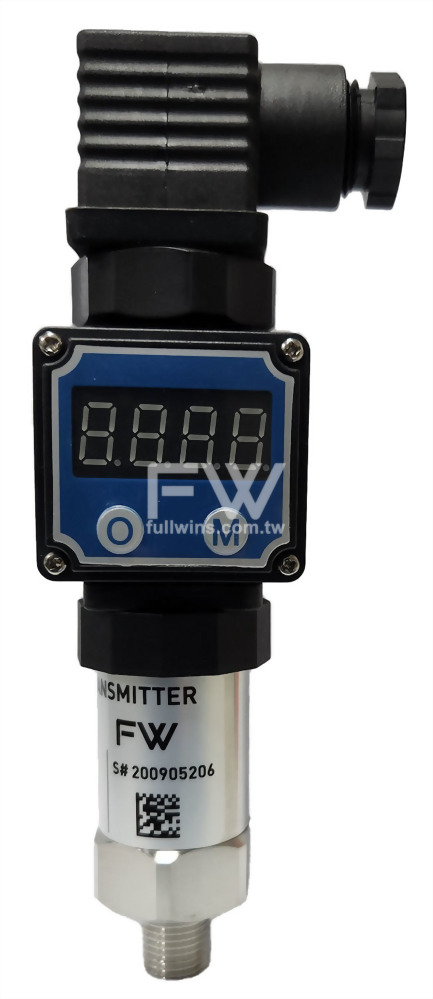

| Option: Digital Display: |
|
Performance |
|
|
Accuracy |
±0.25% of FS @25°C(Typ.) ±0.5% of FS @25°C(Max.) Linearity (best straight line) + Hysteresis + Repeatability |
|
Operating Temperature Range |
-20 to 85°C |
|
Compensated Temperature Range |
0 to 70°C |
|
Overpressure |
150% of FS |
|
Vibration |
10 g RMS (20 to 2000Hz) |
|
Shock |
100 g (11ms) |
|
Cycles |
10x105 |
|
Long Term Stability |
±0.3% of FS |
|
Electrical @25°C |
|
|
Output signal / Supply |
2-wire 4…20mA / VS = 10...30VDC |
|
3-wire 1…5VDC / VS = 10...30VDC |
|
|
3-wire 0…5VDC / VS = 10...30VDC |
|
|
3-wire 0…10VDC / VS = 12...30VDC |
|
|
3-wire 0.5…4.5VDC / VS = 8...30VDC |
|
|
3-wire 0.5…4.5VDC ratiometric / VS = 5V±0.1VDC |
|
|
3-wire 0.5…2.5VDC / VS = 3.3 V±0.1VDC |
|
|
3-wire 0.5…2.5VDC / VS = 5V±0.1VDC |
|
|
4-wire RS485 Modbus RTU / VS = 12... 30VDC |
|
|
4-wire I2C / VS = 3.3...5VDC |
|
|
Insulation Resistance |
100MΩ@100VDC |
|
EMC Test |
IEC61000-4-2 / IEC61000-4-3 |
|
Reverse polarity protection |
No damage – no function |
|
Physical Specifications |
|
|
Housing |
SUS304 stainless steel |
|
Diaphragm |
SUS316L stainless steel |
|
Oil Filling |
Silicone oil |
|
Sealing |
FKM (standard) Fully welded structure (option) |
